Step-up Converter with input voltage as low as 2V

Regular price $2.20

  • Maximum output current: 2A
  • Input voltage range: 2V - 24V
  • Maximum output voltage: > 28V
  • Efficiency: > 93%

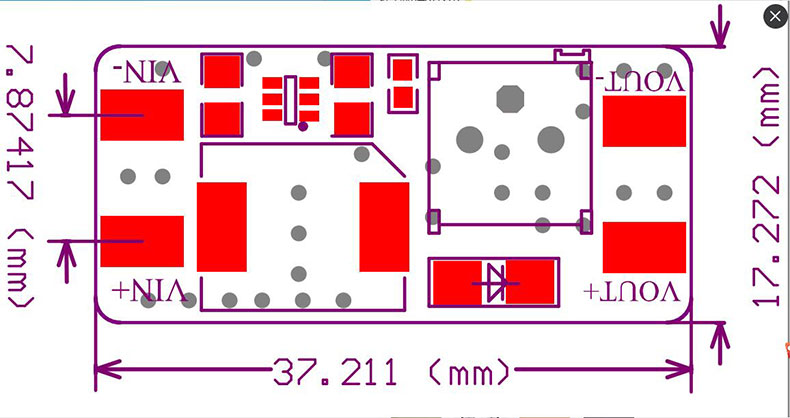

  • Dimension: 36mm x 17mm x 7mm ( 1.42" x 0.67" x 0.28" )
How to Use:
  • Do not apply voltage higher than the maximum allow input voltage
  • Do not exceed the maximum output current
  • In case the output voltage can not be changed (i. e. output voltage always follows input voltage) turn the POT counter-clockwise for more than 20 turns. Apply power again.
  • Direction of adjustment: with the POT facing yourself turning clockwise will make output voltage lower. Turning counter-clockwise will make output voltage higher.
