DSO Shell Oscilloscope Assembled

Regular price $49.00

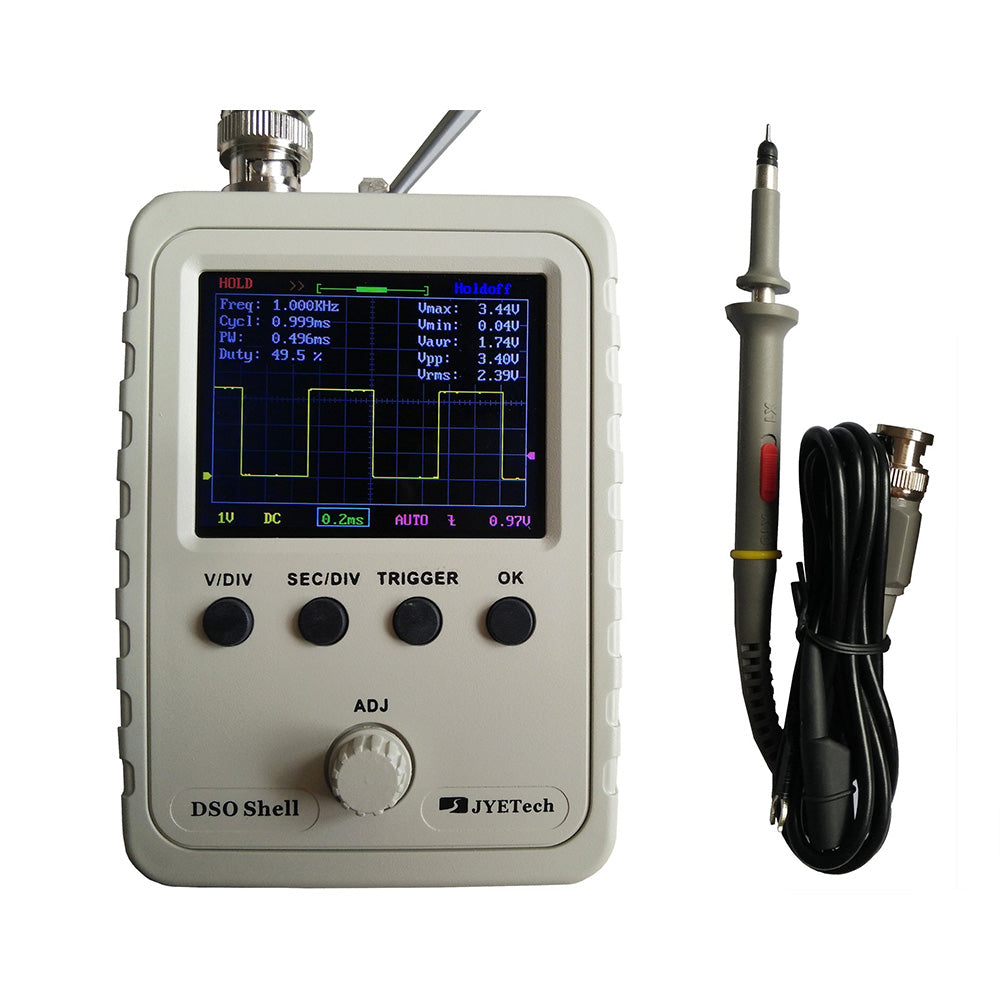

This is the fully assembled version of DSO Shell together with standard BNC probe. Its analog board was redesigned and is more reliable. [Kit version]

Note: Power supply is sold separately. Please see this power adapter (choose 9V version).

[ Outshape ]

[ Packing]

Vertical
  • Number of Channel: 1
  • Analog Bandwidth: 0 - 200KHz
  • Sensitivity: 5mV/Div - 20V/Div
  • Sensitivity error: < 5%
  • Resolution: 12-bit
  • Input Impedance: 1M ohm
  • Maximum Input voltage: 50Vpk
  • Coupling: DC, AC, GND
Horizontal
  • Max Real-time Sampling Rate: 1Msps
  • Timebase: 10us/Div - 500s/Div
  • Record Length: 1024
Trigger
  • Trigger Modes: Auto, Normal, Single
  • Trigger Types: Rising/falling edge
  • Trigger Position: 1/2 of buffer size fixed
Display
  • 2.4-inch color TFT LCD with 320 x 240 resolution
Power Supply
  • 9V DC (8 - 10V acceptable)
  • Supply Current: 120mA @ 9V
Physical
  • Dimension: 115mm X 75mm X 22mm
  • Weight: 100 gram (not including cables and power supply)
Documents

Manufacturer website: www.jyetech.com
