M162 LCR Meter

Regular price $49.50

M162 LCR meter is a great complimentary tool to most multi-meters. Regular multi-meters are good in many way. But they usually have rather limited or even no ability for capacitance, inductance, and sub-ohm resistance measurement. The addition of a M162 LCR meter will overcome this deficiency. The DIY kit version of M162 is very easy to build. No special calibration is required to achieve ~1% accuracy.

Features
  • Resistance range: 0.1ohm — 20M ohm
  • Capacitance range: 1pF — 20mF
  • Inductance range: 1uH — 20KH
  • Fully automatic ranging
  • Accuracy: about 1%
  • Built-in virtual USB comport for data output and firmware upgrade
  • Serial data output via USB comport or direct LVTTL
  • Display HOLD function
  • USB/Battery powered
  • Easy to build, easy to use
  • Optional acrylic enclosure (sold separately)

Photos

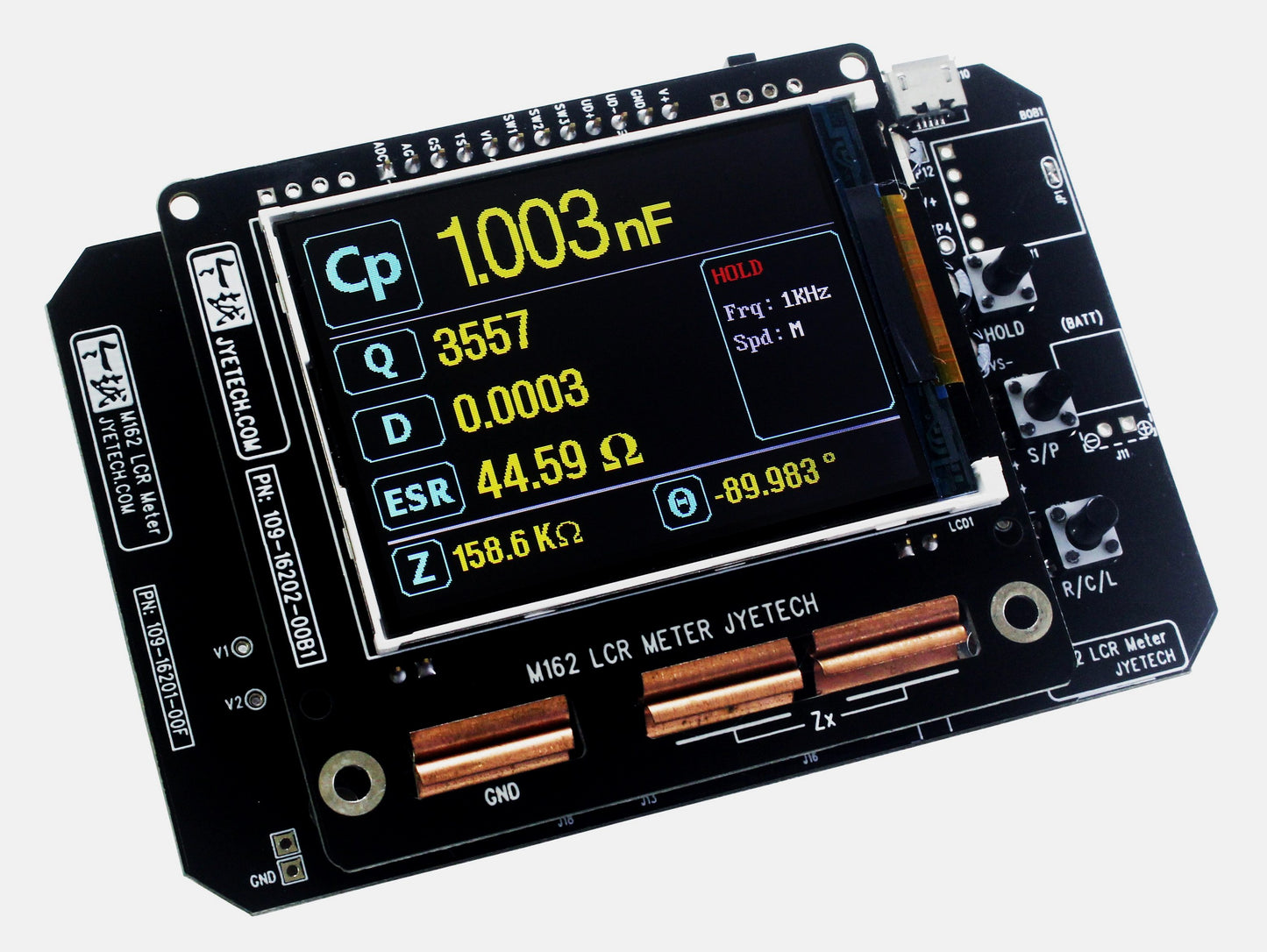

Assembled
Kit
Assembled with enclousre
Main board
Assembed analog board
Measurement example on 1K 0.1% resistor

Documents
User Manual (Rev.00)
Assembly Guide (Rev.00)
Schematic (main board)
Schematic (Analog board)

Manufacturer website: www.jyetech.com
